BEETRON Free-Piston Generator

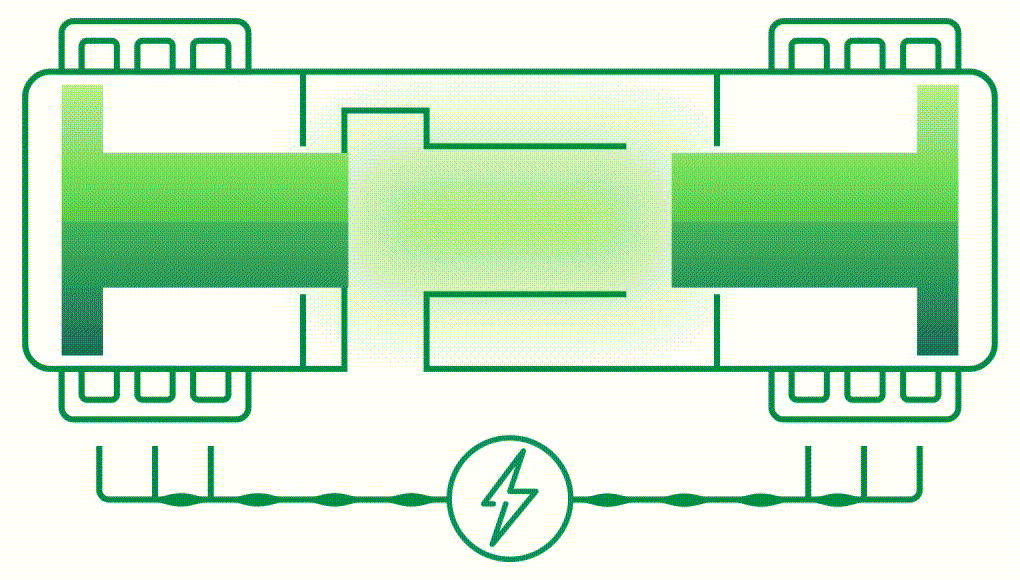

Two opposed pistons and central reaction chambers drive a connected linear generator. The system eliminates the crankshaft as well as many other components and reduces mechanical losses.
But - removing the crankshaft does not merely remove a component - it removes the kinematic constraint of the conventional engine.
Piston trajectory, compression ratio and reversal points become dynamic variables resulting from the instantaneous balance between pressure, inertia, restoring forces and electromagnetic load. This fundamentally different coupling between thermodynamics, mechanics and electrical conversion makes the free-piston engine a distinct class of energy converter.
BEETRON developed a key innovation that significantly improves overall system efficiency by reducing thermodynamic losses. A patent application for this innovation was filed at the end of 2025.
BEETRON is designed to achieve system efficiency exceeding that of many fuel-cell systems in decentralized applications, while retaining the robustness of combustion-based generators and enabling multi-fuel operation.
Conventional mobile power generators in the 40 – 100 kW range typically achieve limited efficiency and are usually optimized for a single fuel, most commonly diesel. Fuel cells offer a higher-efficiency alternative, but their high acquisition and maintenance costs have so far limited broad market adoption.
This creates a clear market gap: decentralized power systems need the efficiency of fuel cells, but with the robustness and cost structure of combustion-based generators. Thanks to its higher efficiency and simplified architecture, the BEETRON free-piston generator is designed to achieve significantly lower operating and maintenance costs than conventional diesel generators.
125 kVA (100 kW)
125 kVA (100 kW)
Electric Power Output
22 l/h
28 - 31 l/h
Consumption
7,500 h
7,500 h
Annual Operating Hours
BEETRON
Conventional Power Generator
45,000 l/a
Fuel Savings /a
A free-piston engine is particularly well suited to Homogeneous Charge Compression Ignition (HCCI) because its piston motion is not mechanically constrained by a crankshaft. HCCI offers high efficiency and very low emissions.
In conventional crankshaft engines, controlling HCCI across a wide range of loads is challenging. The crank mechanism determines piston motion, while the compression ratio is typically fixed. Premature autoignition can cause rapid pressure rises and high mechanical stresses.
In a free-piston system, the piston stroke and compression ratio can be adjusted dynamically to achieve the temperature and pressure required for controlled autoignition. Combined with appropriate strategies, this flexibility supports stable HCCI operation across varying loads and helps limiting excessive pressure peaks, reducing the risk of engine damage.
